Product Details:
|
| Product Name: | Flexitank Butterfly Valve | Temperature-resistance: | -20℃--+80℃ |
|---|---|---|---|
| Material: | PP | Diameter: | 3'' |
| Type: | L Shape Butterfly Valve | Color: | White |
| High Light: | ibc tank accessories,ibc container fittings |
||

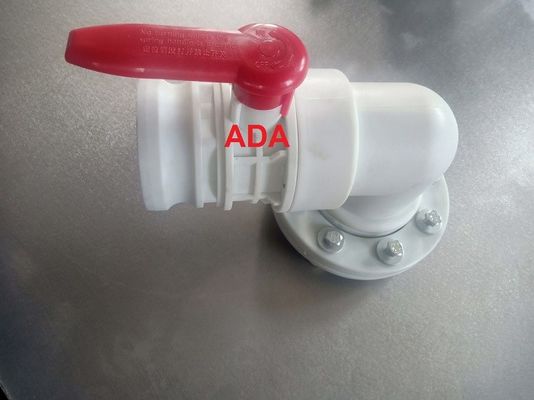

PP Material 3'' Flexitank Butterfly Valve Flexibag L shape Valve
As the core part of flexitank, the quality of the valve plays a vital role during the safe transportation of the liquids.
Every ADA Flexitank with one or two 3'' ball valve(s) or 3'' butterfly valve(s) for loading and discharging.
ADA Flexitank produce our own valves to make sure the safety transportation and also offer them to other suppliers and help them serve more users.
Axcetp normal 3'' ball/ butterfly valve, we also develop one 3'' L shape butterfly valve, details for reference in following.
Let's give a introduction of ADA flexitank valves:
|
ADA valve description
|
The valve body adopts new special materials, which has high hardness, thick wall and flange, large flow, and the valve body itself has a leak-proof function when connected with a quick joint.
|
|
Valve Core
|
It has a unique self-locking function and locating pin locking function. The self-locking function automatically locks the valve core and valve body after using the valve for a period of time, which increases the sealing and prevents misoperation and prevents accidents occurs; the positioning locking function ensures that the sealing position of the valve core is centered, preventing accidents when the it is deflected and the handle is turned freely.
|
|
Handle
|
It adopts split handle, including rotary handle and positioning handle. The position of the valve core is determined by the positioning handle, which facilitates the loading and unloading operation, and protects the switch of the valve. The positioning handle adopts a metal structure to increase the strength and is convenient to use. |
|
Valve limit
|
It can prevent the opening or closing of the valve when it is too large or too small, which can ensure that the valve is completely closed and opened during loading and unloading, to avoid damage to the valve body and prevent accidents.
|
