|Valve:||3'' Ball/ Butterfly Valve||Temperature:||-20 Degree To 70 Degree|
24000L Bulk Container Liner,
Multilayers Bulk Container Liner,
Ethylene Glycol Bulk Container Liner
Ethylene glycol Use Multilayers Flexitank 20000L 21000L 22000L 23000L 24000L Bulk Container Liner
1. What is Multilayers Flexitank?

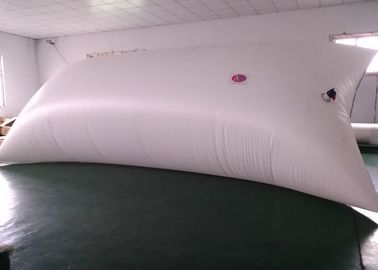

Flexitank is also named Flexibag, Bulk Container Liner, it's constructed by multilayers PE, one layer outer PP and inlet/outlet valve(s).
Flexitank used for the storage and transportation of non-hazardous liquids, is a very popular package for non-hazardous liquids, including chemical liquids, food oils, industrial oils etc.
2. What kind of flexitank suitable to Ethylene Glycol?
Usually people have different specification requirement due to their experience and cargo features.
For Glycol, the density is similar with water, so the capacity of flexitank according to how many tons glycol customers want to load, usually people use 20000L, 21000L, 22000L, 23000L, 24000L flexitank/ Bulk Container Liner load glycol which could load more than 20 tons.
According to load and discharge method, there are three types flexitanks: Top Loading and Top Discharging(TLTD), Bottom Loading and Bottom Discharging(BLBD), Top Loading and Bottom Discharging(TLBD).
For Ethylene Glycol, the above three types all suitable, but the most popular type is Bottom Loading and Bottom Discharging(BLBD) due to the easy operation.
Since construcion, there are flexitanks with 4 layers PE +1 layer PP+ valve(s); there are also flexitanks with 3 layers PE+1 layer PP+ valve(s), for glycol, the most popular is 4 layers PE+1 layer PP type flexitank.
3. Specification of Multilayers Flexitank Bulk Container Liner
|Capacity||16000L to 26000L|
|Material||Multilayers LDPE and one layer PP|
|Layers||3 layers PE and 1 layer PP|
|4 layers PE and 1 layer PP|
|Valve||3'' Ball valve|
|Type||Top Loading and Top Discharging(TLTD)|
|Bottom Loading and Bottom Discharging(BLBD)|
|Top Loading and Bottom Discharging(TLBD)|
|Accessories||Steel bars, bulkhead, corrugated paper|
|Heating Pad||Steam Heating Pad and Electric Heating Pad|
|Insurance||USD 5000 000 Global Quality Liability Insurance|
|Certificates||COA, AAR, ISO9001, HALAL, KOSHER, FDA, EC|
|Approval shipping lines||Maersk Line, CMA CGM, Yang Ming Line, Wanhai, KMTC, APL, HMM, Hapag-Lloyd...|
4. What products can be loaded in Flexitank Flexibag Bulk Container Liner?
|Foodstuffs||Palm oil, Sunflower oil, Edible oil, Vegetable oil, Olive oil, Grape wine, Sorbitol, Soy sauce, Fruit juices, Food additives, Wine, Mineral, Glucose, Malt, Syrup and so on.|
|Industrial Oils||Base oil, Lubricant, Transformer oil, White oil, Tung-oil, Glycerin, Coconut butter, Hydraulic oil, Used cooking oil, Grease, Gear oil, Ricinus oil, High fatty acids and oleic acid etc.|
|Non-hazardous liquid chemicals||Plasticizers, Synthetic resins, Detergents, Disinfectors, Surface active agents, Polyhydric alcohols, Feed additives, Silicate, Salt Solution, Glycols, Emulsions, Polyether, Alkylating agent, Fertilizers, Natural& synthetic latex etc.|
5. How to install the Flexitank Bulk Container Liner?
