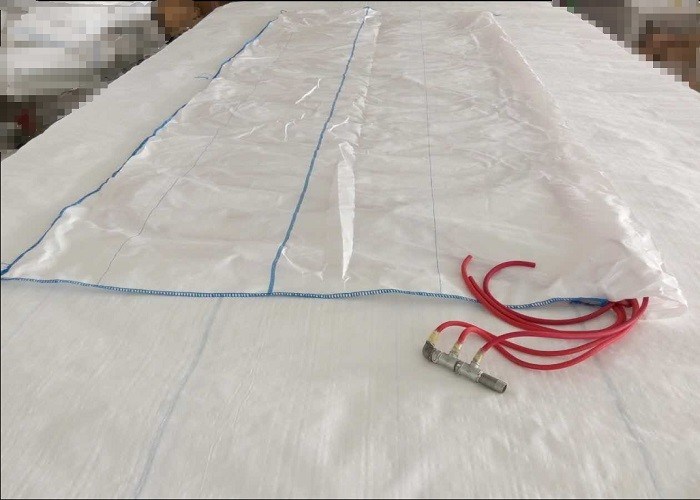

Professional Flexitank Heating Pad Steam Heater Pad For Solidify Non - Hazardous Liquid

Solidify Non-hazardous Liquid Flexitank Heating Pad Steam Heater Pad

ADA produce kinds of Heating Pads for solidified liquid products and helping them be discharged more easily from flexitank.

Specification:

Material: Rubber+Steel

Inside Diameter: 8mm

Outside Diameter: 16mm

Inlet Hose: 26mm

Working pressure: ＜3.0 Mpa(≤60°C)

Temperature range: ＜120℃(0.1Mpa)

Heat source: Steam

Layout dimension: 5.6m*2.4m

Weight: 25 KGS

Outer Packing Dimension: 1.1*0.4*0.5(m)

Note:

1. Inlet hole and outlet hole are interchangeable.

2.If there is damage of the pipe, please cut it, re-install.

How to use the heating pad?

First, pave the heating pad under the corrugated paper and above the container floor.

Second, make a hole on the bulkhead and pull the inlet hose and outlet hose out through the hole, use cable ties fix the hoses.

Third, in the discharging site, connect the heating hose and the inlet hose of the heating pad, keep the outlet hose clear and put it in a vessel to collect the water flowing out.

Notes:

When paving heating pad, please make sure the container floor is clean(no nails, stones and other sharp items), then pave the corrugated paper and flexitank, the heating pad should be at the bottom.

When heating, please always pay attention to the situation of the inlet and outlet to ensure the outlet continue to have water outflow and the inlet hose without exception.

During heating, please open the valve and connect the discharging hose, put the hose in a storage tank such as IBC tank, ISO tank, discharging when heating to save time.

Application:

Palm Oil related products, fatty acid, Used Cooking Oil, Biodiesel, Tallow, Vaseline, Syrup etc.
